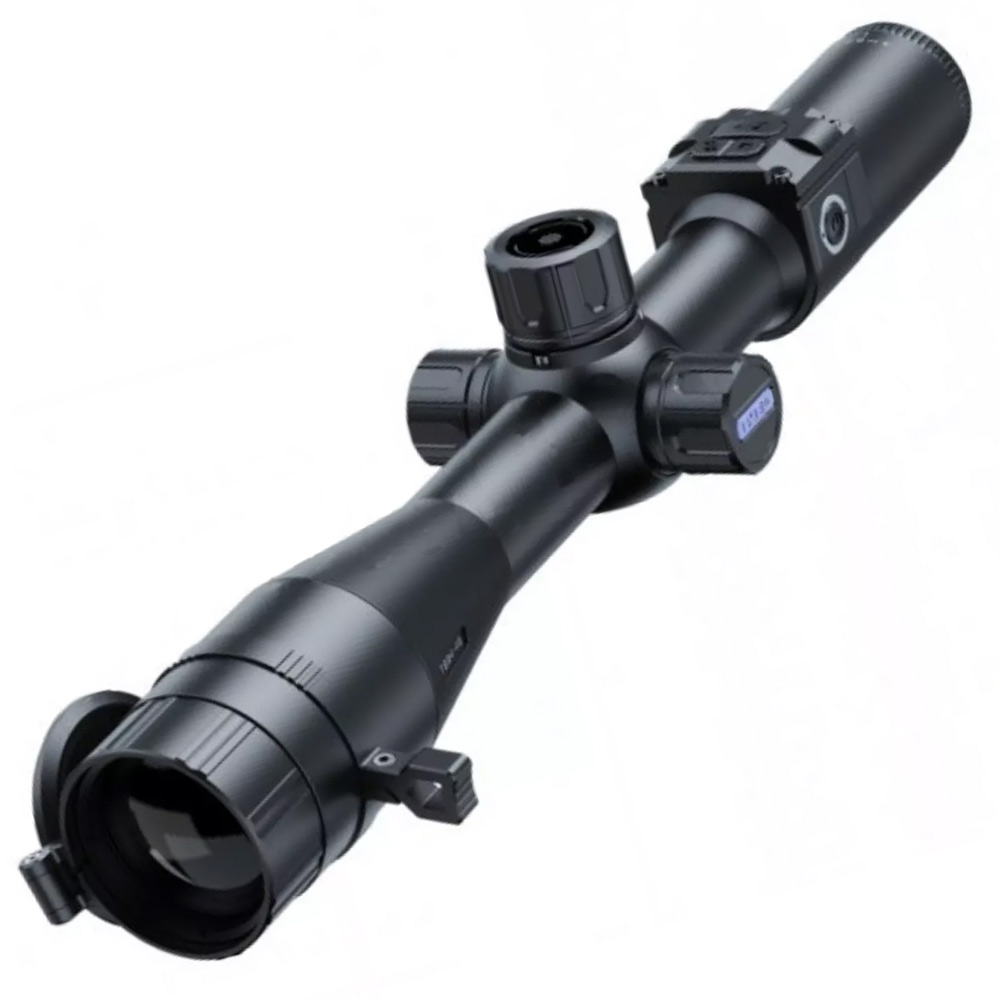

Pard TS62-45 Thermal Rifle Scope

Description

Pard TS62-45 Thermal Rifle Scope

The Pard TS62 Thermal Rifle Scope comes with 100mm long eye-relief for ensured viewing comfort, a wide field of view and rubber eyepieces to ensure concealed observation at night; keeping the users habit of using traditional daytime optics. The TS62 also comes with an ultra-clear display with picture-in-picture function that provides a clear heat signature.

Main Features
Ultra clear display
100mm eye-relief
Highly sensitive 12?m LWIR sensor
Integrated ballistic calculator
Infrared image enhancement algorithm
Self activated recording
Wi-Fi enabled
IP67 waterproof
6 different reticle styles

With a wide field of view, the Pard TS62 offers a great sense of where the target is in relation to its environment. The highly sensitive 12?m vanadium oxide (VOx) sensor, NETD 25mK and 12?m pixel pitch allows users to enjoy rich contrast and bold resolution when acquiring targets. The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. Improving your accuracy by calculating precise aiming points for your next shot placement.

The TS62 uses proprietary software and next-level image enhancement algorithm to deliver high infrared spectrum sensitivity values to improve image visibility. The IREA improves the overall image by reducing image distortion, and enrich the amount of detail even of distant targets. This unit also features self-activated recording – when the device detects recoil, the whole shooting process will be recorded in 20 seconds interval. You can effortlessly record that perfect hunting moment.

Specifications
Sensor
Type Uncooled VOx (Vanadium Oxide)
Resolution 640 x 480p
Pixel Pitch 12 x 12?m
NETD 25 (0.025C)
Frame Rate 50Hz
Human Detection Distance 1,800m
Vehicle Detection Distance 3,300m
Optics
Objective Lens 45mm
Optical Magnification 2.4x
Digital Zoom 2-8x
Field of View 7.3
Eye Relief 100mm
Diopter Adjustment -3 / 5
Display
Type IPS LCD
Resolution 800 x 800
Reticle Styles 6
Reticle Colours Red
White
Yellow
Green
Scene Mode City
Rain
Forest
Image Mode White Hot
Black Hot
Red Hot
Edge
In-Hot
Sky
Photo / Video
Photo Resolution 1536 x 1536p
Photo Format JPG
Video Resolution 768 x 768
Video Format MP4
Storage TF Card (Max. 128GB)
Main Function
LRF Detection Range 1000m
Loop Recording Yes
Self-Motivated Recording Yes
Ballistic Calculator Yes
Hot Track Yes
PIP Yes
Shutter Mechanical Shutter
Gyroscope Yes
Firmware Upgrade Yes
E-Compass Yes
Interfaces
USB Type-C Yes
HDMI Output Yes
Connections
Wi-Fi Yes
Supported Apps Pard Vision
Power Supply
Battery Type 18650 Li-Ion Battery
Output Voltage 3.7V
Operating Time 6
External Power Supply Type-C
Environmental Characteristics
Integration of Protection IP67
Operating Temperature -20C 50C
Recoil Power 6000
Material
Housing Aluminium Alloy
Objective Lens All-Glass Multi-Coated Lens
Measurement
Product Dimensions 410 x 88 x 95
N.W / PCS 575 grams
