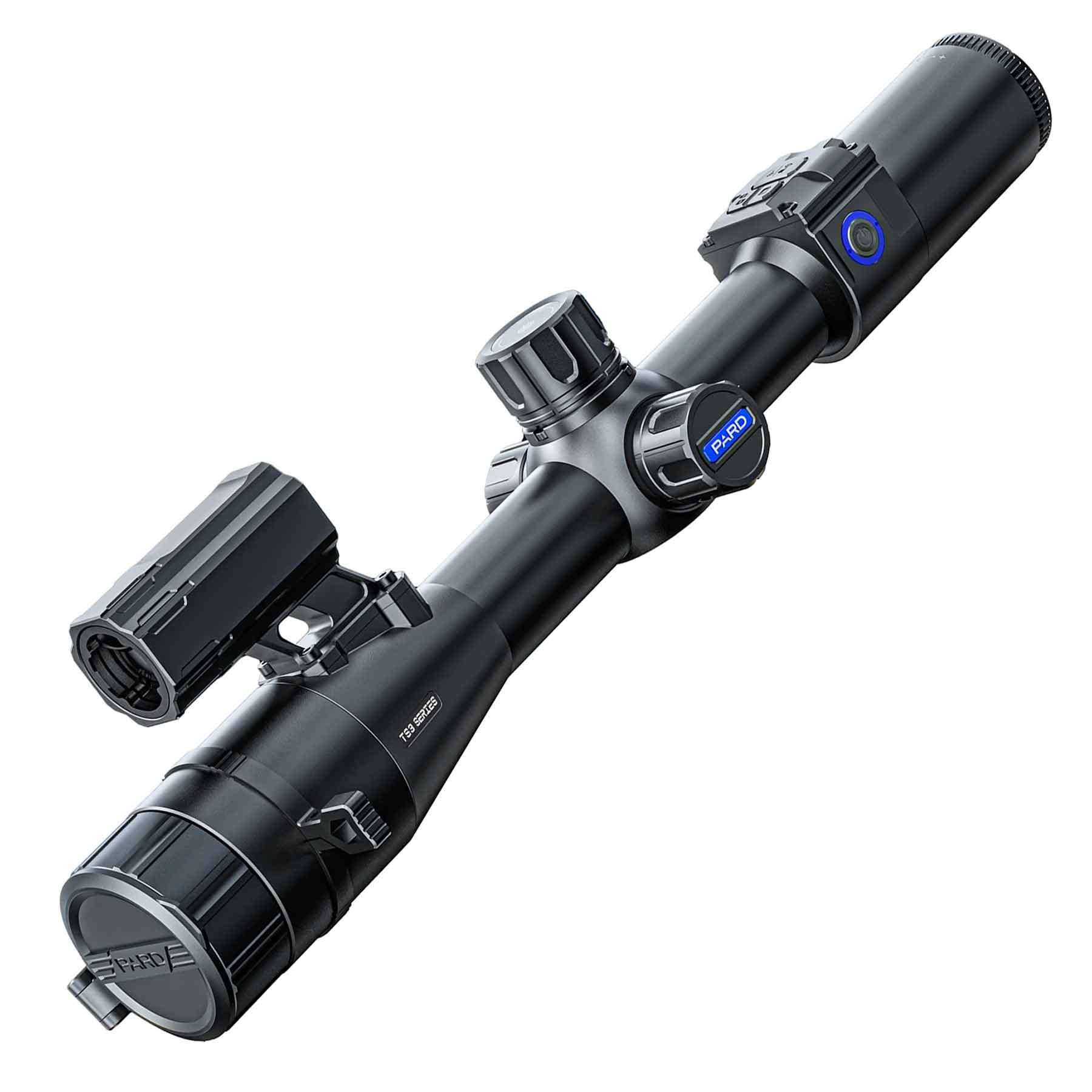

Pard TS62-45 LRF Thermal Rifle Scope

Description

Pard TS62-45 LRF Thermal Rifle Scope

Unleash the ultimate observation experience with the Pard TS62-45 LRF Thermal Rifle Scope and hunt smarter. Targets can be detected up to 1000m away. The newly developed compact ranging module is precise and has fast detection speed. When paired with integrated ballistics, the LRF gives you the range information you need at night to hunt smarter.

Main Features
High Sensitivity 12?m LWIR Sensor
Long Eye-relief for Ensured Viewing Comfort
800 x 800 IPS Ultra-clear Display
Fast Detection 1000m LRF
Accurate Ballistic Calculator
Infrared Image Enhancement Algorithm (IREA)
Self-activated Recording
Intuitive Control Knob
IP67 Waterproof

The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. Improving your accuracy by calculating precise aiming points for your next shot placement. The lens options each with 100mm of eye relief, a wide field of view and there is a rubber eyepiece to provide concealed observation at night. The thermal image can be displayed on the display with the picture-in-picture (PIP) function providing a clear heat signature, greatly improve the comfort of eye observation. The Circular display design allows for seeing a whole circle of image. With a wide field of view (FOV), you have a great sense of where the target is in relation to the environment.

The 45mm optical objective lens available lens brings the hunter a wide field of view. Suitable for different hunting environments. The smaller the field of vision, the farther you can see. The TS31 uses proprietary software and next-level image enhancement algorithm to deliver high infrared spectrum sensitivity values to improve image visibility. The IREA improves the overall image by reducing image distortion, and enrich the amount of detail even of distant targets. The TS62-45 LRF Thermal Rifle Scope Features a 640 x 480 pixel 12?m vanadium oxide (VOx) sensor, NETD 25mK and 12?m pixel pitch allows users to enjoy rich contrast and bold resolution when acquiring targets.

Specifications
Sensor
Type Uncooled Vox(Vandium Oxide)
Resolution 640 x 480 px
Pixel Size 12 x 12?m
NETD(mK) 25 (0.025C)
Frame Rate 50Hz
Human Detection Distance 1800m
Vehicle Detection Distance 3300m
Optics
Objective Lens 45mm
Optical Magnification 2.4 x
Digital Zoom 2-8 x
Field of View Horizontal 7.3
Vertical 7.3
Diagonal 10.4
Eye Relief 100mm
Diopter Adjustement -3/5
Display
Type IPS LCD
Resolution 800 x 800 px
Reticle Style 6
Reticle Colour Red/White/Yellow/Green
Scene Mode City/Rain/Forest
Image Mode WhiteHot/BlackHot/Edge/In-Hot/Sky
Photo / Video
Photo Resolution 1536 x 1536 px
Photo Format .jpg
Video Resolution 768 x 768 px
Video Format .mp4
Storage Micro SD Card (Max. 128GB)
Main Function
LRF Detection Range 1000m
Loop Recording Yes
Self Activated Recording Yes
Ballistic Calculator Yes
Hot Track No
PIP Yes
Shutter Mechanical Shutter
Gyroscope Yes
Firmware Upgrade Yes
E-Compass Yes
Interfaces
USB Type-C Yes
HDMI Output Yes
Connections
Wi-Fi Yes
Supported Apps PardVision
Power Supply
Battery Type 18650 Li-ion
Output Voltage 3.7V
Operating Time 6hrs
External Power Supply USB Type-C
Environmental Characteristics
Degree of Protection IP67
Operating Temperature -2050/-4122
Recoil Power 6000J
Material
Housing Aluminium Alloy
Objective Lens All-Glass Multi-Coated Lens
Measurement
Product Dimensions (L x W x H) 350 x 88 x 95mm (Without Long Eyepiece)
410 x 88 x 95mm (With Long Eyepiece)
N.W/pcs (Without Battery) 610g
