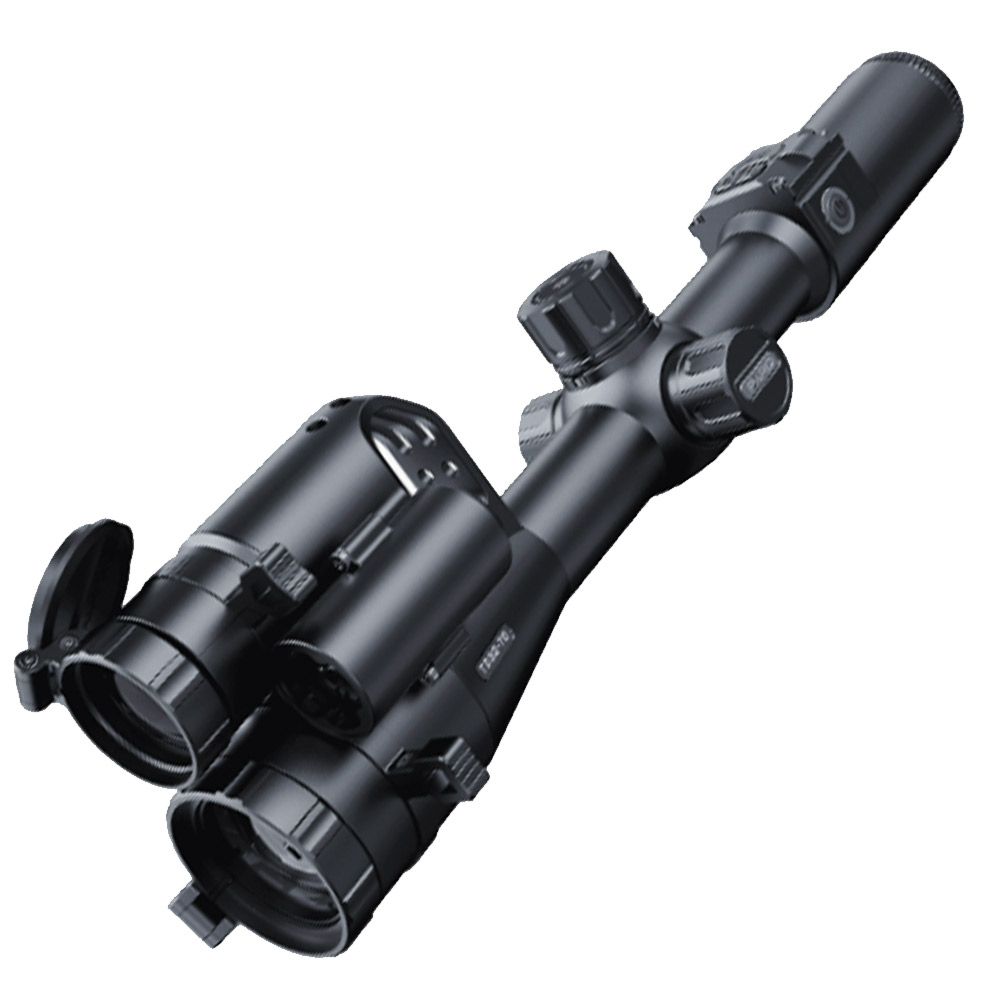

Pard TD32-70 850 Thermal Night Vision LRF Rifle Scope

Unleash the ultimate observation experience, with the first PARD multi-spectral device. The Pard TD32-70 850 Thermal Night Vision LRF Rifle Scope is a multi-spectral scope that can quickly switch between thermal imaging and day/night image. Thermal imaging can be used to detect the target and night vision image to present clear details.
Main Features
Thermal imaging sensor (12?m)
850/940nm options
Bult in laser range finder that detects targets up to 1000m away
Up to 350m infrared fill light illumination
Quick and easy menu option change via control knob
One shot Zeroing
IP67 waterproof
Self-activated recording
Stealth mode
Thermal imaging algorithm (IREA)
Night vision algorithm (VLEA)

The Pard TD32-70 850 Thermal Night Vision LRF Rifle Scope features a 100mm long eye relief, providing a clearer view while maintaining the comfort of using optical scope during hunting activities. This allows for prolonged hunting observation without eye strain. The PIP mode enables the simultaneous display of thermal imaging and night vision on the same screen, allowing for enhanced observation, identification and precise shooting. The control knob allows you to instantly switch between thermal and night vision display on the same screen.

The cutting-edge LRF (Laser Rangefinder) of TD32-70 850 Thermal Night Vision LRF Rifle Scope, will revolutionize your hunting experience. With an impressive range of 1000m, it delivers real-time and accurate distance measurements, empowering you with unparalleled precision for ballistic calculations. The TD32-70 850 Thermal Night Vision LRF Rifle Scope features a 800800 IPS ultra-high definition circular screen and a visual experience similar to the optical scope, offering a superior visual perception that is both more comfortable and clearer. The dual-engine of Infrared Image Enhancement Algorithm (IREA) and Visible Image Enhancement Algorithm (VLEA) enables richer and clearer image details.

Frame Rate
Thermal Sensor
Resolution 384 288 px
Pixel Size 12?m
Frame Rate 50Hz
Human Detection Distance 1400m
Vehicle Detection Distance 2600m
Image Engine Pard IREA
Objective Lens 35mm
Optical Magnification 3 x
Digital Zoom 2 x
Continuous Digital Zoom 3-6
Field of View Horizontal 5.7
Vertical 5.7
Diagonal 8
Focus Range 3m-
Visible Light Sensor
Type CMOS Sensor
1920 x 1080 px
Pixel size 2.9 ?m
Sensitivity 0.001lux
60/30 fps
Image Engine PARD VLEA
Objective Lens 70mm
Optical Magnification 6.5 x
Digital Zoom 2 x
Continuous Digital Zoom 6.5-13
Field of View Horizontal 2.6
Vertical 2.6
Diagonal 3.6
Focus Range 3m-
Resolution 800 x 800 px
Reticle Style 6
Reticle Colour Red/White/Yellow/Green
Scene Mode City/Rain/Forest
Eye Relief 100mm
Diopter Adjustment 53D
Photo / Video
Photo Resolution 2592 x 1944 px
Photo Format .jpg
Video Resolution Thermal: 1024 x768 px
Night Vision: 1440 x 1080 px
Video Format .mp4
Storage Micro SD Card (Max. 128GB)
Main Function
LRF detection range 1200/1000 m
Ballistic Calculator Yes
Gyroscope Yes
Self-motivated recording Yes
Loop Recording Yes
Red Dot Yes
E-Compass Yes
Shutter Mechanical Shutter
Microphone Yes
Firmware upgrade Yes
IR Illuminator
IR Power 5W
IR Illuminating Level 3 Levels
IR Distance 350m
IR Wavelength 850/940 nm
USB Type-C Yes
HDMI Output Yes
Connections Wi-Fi Yes
Supported Apps PardVision
Power Supply
Battery Type Lithium Ion 21700 x 1
Output Voltage 3.7V
Operating Time 6 h
External Power Supply USB Type-C
Environmental Characteristics
Degree of Protection IP67
Operating Temperature (C/F) -20c 50c/ -4f – 122f
Recoil Power -6000J
Housing Aluminium Alloy
Objective Lens All-Glass Multi-Coated Lens
Material Recoil Power -6000J
Objective Lens All Glass Multi Coated Lens
Measurement Product Dimension (L x W x H) 350 x 91 x 95mm
N.W/pcs (w/o battery) 800g
