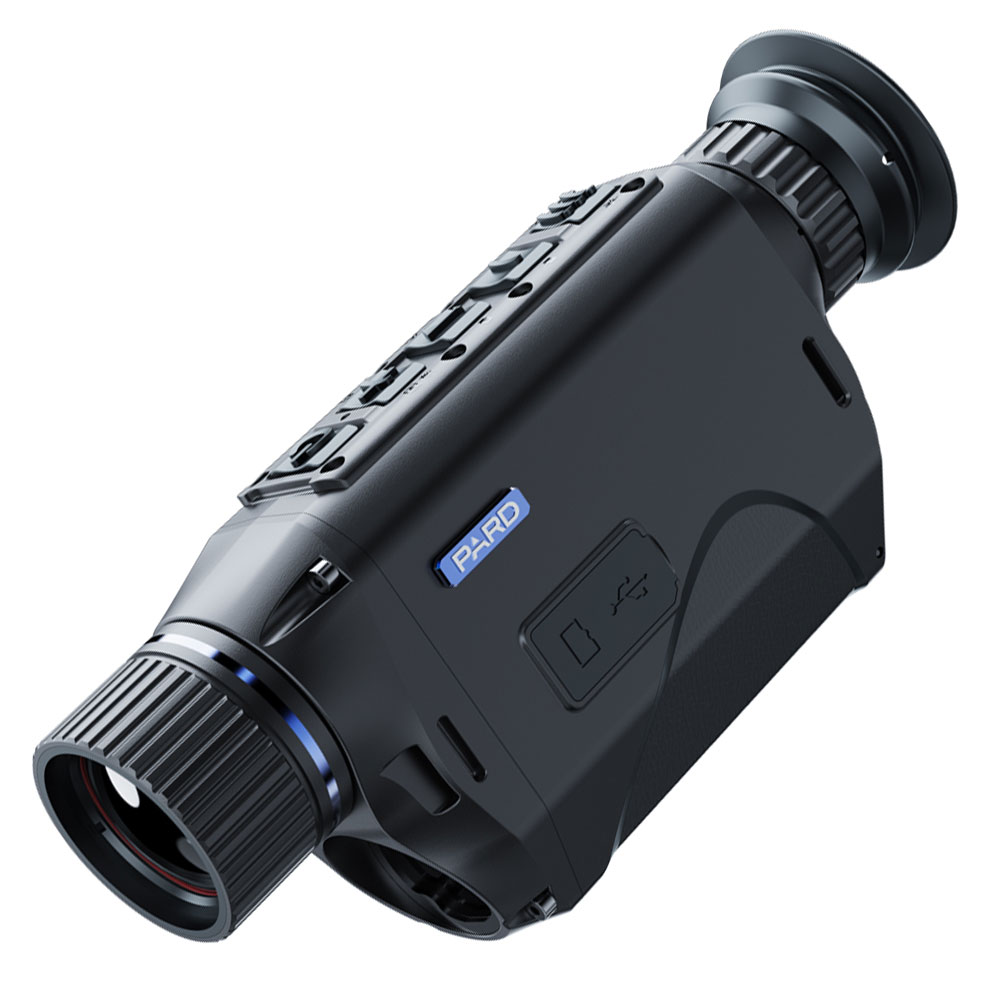

Pard TA32-19 LRF Thermal Monocular

Description

Pard TA32 LRF Thermal Monocular

Hunt smarter, not harder with the Pard TA32 LRF Thermal Monocular. The newly developed high-end monocular in a size of your hand, that will elevate your hunting experience. The laser rangefinder is both compact and lightweight and can detect targets up to 1,000m away, which helps you to shoot more precisely. The Thermal imaging sensor (12?m) can detect subtle differences in temperature and present perfect image detail while the PARD ultra-clear image algorithm has fast processing speed and strong real-time image adaptability.

Main Features
12?m thermal imaging sensor
Features Infrared Image Enhancement Algorithm
Built in laser rangefinder detects up to 1,000m away
Fits in your pocket
Weighs only 290 grams
NETD sensor ?35mk
AMOLED high res. 1024 x 768 display
Wi-Fi enabled
IP67 waterproof
Self-activated recording

This Pard monocular is very versatile and can be used in a wide range of scenarios. The device is lightweight, handheld, pocket sized and allows you to get personal with your surroundings. It?s easy to carry and fits comfortably in the palm of your hands, weighing only 290 grams.

The thermal imaging sensor (12um) can detect subtle differences in temperature and present perfect image detail in low thermal contrast conditions like rain and fog. The image sensor is designed with advanced technology to deliver organic and rich imaging despite adverse weather. The TA32 versions have a NETD sensor of ?35mk. Also, the PARD ultra-clear image algorithm has fast processing speed and strong real-time image adaptability. IREA can effectively improve image detail by correcting image distortion, reducing noise and enhancing contrast.

Specifications
Model 19mm 25mm 35mm
Sensor
Type Uncooled VOx (Vanadium Oxide) Uncooled VOx (Vanadium Oxide) Uncooled VOx (Vanadium Oxide)
Resolution 384 x 288p 384 x 288p 384 x 288p
Pixel Size 12×12?m 12×12?m 12×12?m
NETD ?35Mk (0.035?) ?35Mk (0.035?) ?35Mk (0.035?)
Frame Rate 50Hz 50Hz 50Hz
Human Detection Distance 800m 1,100m 1,400m
Vehicle Detection Distance 1,800m 2,200m 2,600m
Optics
Objective Lens 19mm 25mm 35mm
Optical Magnification 2x 2.6x 3.7x
Digital Zoom 2-8x 2-8x 2-8x
Continuous Digital Zoom 2-32x 2.6-41.6x 3.7-59.2x
Field of View Horizontal 13.8?
Vertical 10.4?
Diagonal 17.2? Horizontal 10.5?
Vertical 7.9?
Diagonal 13.1? Horizontal 7.5?
Vertical 5.6?
Diagonal 9.4?
Eye Relief 20mm 20mm 20mm
Diopter Adjustment ?5D ?5D ?5D
Display
Type AMOLED AMOLED AMOLED
Resolution 1024 x 768p 1024 x 768p 1024 x 768p
Scene Mode City
Rain
Forest City
Rain
Forest City
Rain
Forest
Image Mode White Hot
Black Hot
Red Hot
Fusion 1
Fusion 2
Iron Red 1
Iron Red 2 White Hot
Black Hot
Red Hot
Fusion 1
Fusion 2
Iron Red 1
Iron Red 2 White Hot
Black Hot
Red Hot
Fusion 1
Fusion 2
Iron Red 1
Iron Red 2
Photo / Video
Photo Resolution 2592 x 1944 2592 x 1944 2592 x 1944
Photo Format .jpg .jpg .jpg
Video Resolution 1024 x 768p 1024 x 768p 1024 x 768p
Video Format .mp4 .mp4 .mp4
Storage TF Card (Max. 128GB) TF Card (Max. 128GB) TF Card (Max. 128GB)
Image Engine Pard IREA Pard IREA Pard IREA
Main Function
LRF Detection Range 1,000m (1,200yrds) 1,000m (1,200yrds) 1,000m (1,200yrds)
PIP Yes Yes Yes
Loop Recording Yes Yes Yes
Red Dot Yes Yes Yes
Hot Track Yes Yes Yes
E-Compass Yes Yes Yes
Shutter Yes Yes Yes
Microphone Yes Yes Yes
Firmware Upgrade Yes Yes Yes
Connections
USB Type-C Yes Yes Yes
HDMI Output Yes Yes Yes
Wi-Fi Yes Yes Yes
Supported Apps PardVision PardVision PardVision
Power Supply
Battery Type 18650 Li-ion 18650 Li-ion 18650 Li-ion
Output Voltage 3.7V 3.7V 3.7V
Operating Time ?6 ?6 ?6
External Power Supply USB Type-C USB Type-C USB Type-C
Environmental Characteristics
Degree of Protection IP67 IP67 IP67
Operating Temperature -20 ~ +50C / -4 ~ +122F -20 ~ +50C / -4 ~ +122F -20 ~ +50C / -4 ~ +122F
Material
Housing Aluminium Alloy + Composite Aluminium Alloy + Composite Aluminium Alloy + Composite
Eyepiece All-Glass Multi-Coated Lens All-Glass Multi-Coated Lens All-Glass Multi-Coated Lens
Measurement
Product Dimensions (L x W x H) 158 x 73 x 49mm 166 x 73 x 49mm 173 x 73 x 49mm
N.W/pcs (w/ & w/o battery) 312 330 330
